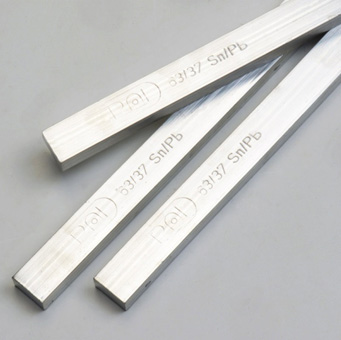

Sn63Pb37 Solder Sticks
PAI Sn63Pb37 solder sticks are being formulated with virgin raw metals processed in state-of-the-art Vaccualloy Technology that brings world class quality along. Here, oxygen interaction with alloy is nil and thus, dross formation is reduced at PCB assembly or PCB manufacturing processes. Also an increased flow rate & reduced impurities found. PAI Sn63Pb37 is compatible with typical range of flux application formulas used in Electronics Industry today.
Storage & Handling
- Do not use Fire near storage area.
- Store in Dry, Cool and Non-Corrosive environment.
- Wear Personal Protective Equipments while Handling.
- Wear Personal Protective Equipments while Processing.
Alloy Composition
| Sl. No |
Metal |
PAI Sn63Pb37 Solder Sticks |
ISO9453 Specification |
J-STD-006 Specification |
| 1 |
Sn |
63% min |
62.5%~63.50% |
62.5%~63.50% |
| 2 |
Pb |
Rem |
Rem |
Rem |
| 3 |
Sb |
0.05% max |
0.05% max |
0.5% max |
| 4 |
Cu |
0.05% max |
0.05% max |
0.08% max |
| 5 |
Au |
0.05% max |
0.05% max |
NA |
| 6 |
Ag |
0.10% max |
NA |
0.10% max |
| 7 |
Al |
0.001% max |
0.001% max |
0.005% max |
| 8 |
As |
0.03% max |
0.03% max |
0.03% max |
| 9 |
Bi |
0.05% max |
0.05% max |
0.25% max |
| 10 |
Cd |
0.002% max |
0.002% max |
0.001% max |
| 11 |
In |
0.003% max |
NA |
NA |
| 12 |
Fe |
0.02% max |
0.02% max |
0.02% max |
| 13 |
Ni |
0.01% max |
NA |
0.01% max |
| 14 |
Zn |
0.001% max |
0.001% max |
0.003% max |
| 15 |
S |
0.0004% max |
NA |
NA |
Physical Characteristics of Application
| Alloy |
Sn63Pb37 |
| Shape |
Rectangular |
| Density |
8.4gm/cm³ at 200C |
| Melting Point |
1830C |
| Standard Package Quantity |
25Kgs |
| Application |
Wave Soldering / HASL Process |
| Standards Considered |
JIS-Z-3282 |
| Shelf Life |
10 Years |
Technical Specifications
| Technical Factors Recommended |
Specifications |
| Solder Pot Temperature |
250°C to 260°C |
| Dwell Time |
2 Sec to 4 Sec |
| Immersion |
0.5% to 0.70% of PWBs thickness that being processed |
| Dross Recovery |
Once in every 8 hours |
| Impurities Level Check |
In-house specifications |
| Other Factors |
Refer liquid flux manufacturer specifications for desired yields |
