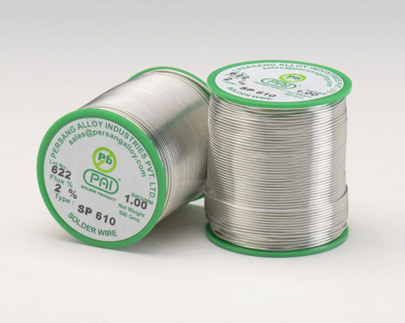

PAI SP610 ( SAC305 ) Pb Free SOLDER WIRE
PAI SAC305 RoHS Compliance Solder Wires are being formulated with High Virgin Raw Metals Processed in state-of-the-art Vaccualloy Technology that brings world class Quality along. Here, Oxygen interaction with Alloy is Nil and thus, Dross formulation is reduced at PCB Assembly Process. Also an increase flow rate & reduced impurities found. PAI SAC305 Alloy is compatible for a typical range of Flux Application Formulas used in Electronics Industry Today.
Storage & Handling
- Do not use Fire near storage area.
- Store in Dry, Cool and Non-Corrosive environment.
- Wear Personal Protective Equipments while Handling.
- Wear Personal Protective Equipments while Processing.
Product Specifictions
| Sl No |
Item |
Specification |
Standard |
| 1 |
Appearance |
Bright and shiny surface finishes |
|
| 2 |
Alloy |
Sn/Ag3.0/Cu0.5/Ni0.06/Ge0.01 |
JIS-Z-3282 A CLASS |
| 3 |
Melting Point |
217~2190C |
DSC |
| 4 |
Flux Content |
2% & 2.2% ±0.2 % |
JIS-Z-3283 |
| 5 |
Halide Content Under |
0.1% |
JIS-Z-3283 |
| 6 |
Gravity |
7.4 |
|
| 7 |
Spread ability |
> 80% |
JIS-Z-3197 |
| 8 |
Packaging |
500g, |
|
| 9 |
Diameters Tolerances |
1.6mm,1mm,0.8mm,0.7mm &0.6mm |
JIS-Z-3283 |
| 10 |
Flux Type |
ROL1 |
J-STD-004 |
| 11 |
RoHS Complaint |
Yes |
International Standards |
| 12 |
Features |
Excellent solder joint reliability. Superior joint strength. |
| |
|
Excellent thermal & Mechanical fatigue resistance. Low cleanin |
| |
|
required after solder joint |
|
| 13 |
Purpose |
For use in applications requiring good activation. |
Physical Characteristics of Application
| Sl No |
Test Item |
Test Result |
Test Method |
| 1 |
Silver Chromate Test |
PASS |
IPC-TM-650, 2.6.33 |
| 2 |
Copper Mirror Test |
PASS |
IPC-TM-650, 2.6.32 |
| 3 |
Copper plate Corrosion |
PASS |
JIS-Z-3197, 6.6.1 |
| 4 |
S.I.R Test |
1×109 up |
IPC-TM-650, 2.6.3.3 |
| 5 |
Electro migration Test |
1×10912up |
IPC-TM-650, 2.6.14.1 |
Alloy Composition
| (Sn) |
(Ag) |
(Cu) |
(Ni) |
(Ge) |
(Zn) |
(Al) |
(Sb) |
(Fe) |
(As) |
(Bi) |
(Cd) |
(Pb) |
| REM. |
2.9~3.1 |
0.4~0.6 |
0.04~0.08 |
0.005~0.02 |
0.002 Max |
0.002 Max |
0.12 Max |
0.02 Max |
0.03 Max |
0.10 Max |
1 RPM |
100 RPM |
