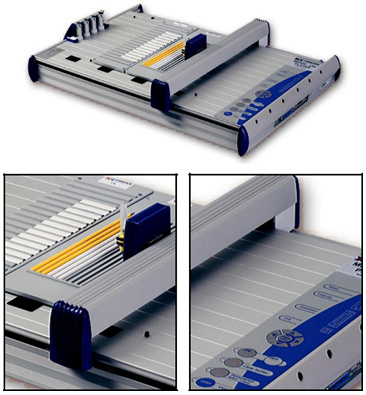

MK500 - A3 Plotter
- Provides complete customized marking for cables, wires, terminal blocks and components.
- Automatically returns the pen to the storage station so the tip of the pen doesn’t dry.
- MK500 can print on these Partex products: PA+, PC, PK, POH, TX and PS.
Facts
- Printing method : Plotter pens with etching ink
- Drawing speed : Max 40mm/s (1.57 tum/s)
- Software : Variosign
- PC-connection : Parallel port LPT1 or USB 1.1
- Memory buffer : 16 MB.
- Power supply : 100-240 V AC, 50 / 60 Hz.
- Dimensions : (L x W x H): 660 x 440 x 125 mm. (25.98 x 17.32 x 4.92 tum)
- Weight : Approx. 8 kg (17.64 pounds)
- Temperatures :
Working temperature : +10ºC to +35ºC ( 50ºF to 95ºF)
Storage temperature : -10ºC to +50ºC ( 14ºF to 122ºF) Recommended profile temperature: +20°C ( 68ºF)
