Surface Resistance Meter - Digital Z2032
With Ambient Temperature Measurement
This is a wide-range, battery operated, portable instrument for measuring Surface Resistivity of a surface or Resistance between 2 points. In the electronics industry, products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats, etc., have resistance values which need to conform to stringent specifications and fall within specified limits. The material characteristics - Conductive, Dissipative and Insulative are also displayed.
The additional feature are surface-to-ground measurement, ambient Temperature measurement and Data Hold function, all indicated on a large backlit LCD display.

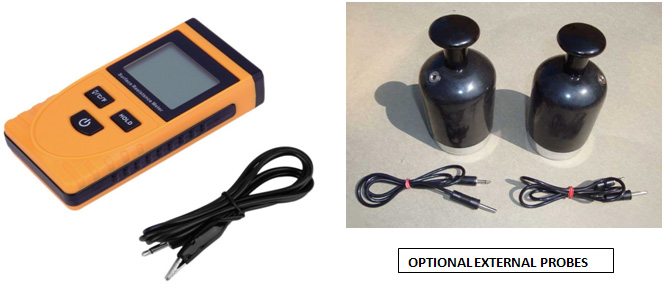

MEASUREMENTS CAN ALSO BE MADE USING EXTERNAL PROBES AS SHOWN ABOVE
ALSO AVAILABLE WITH FOOTWEAR RANGE UPTO 100M OHMS
Specifications
- Measurement Range : 10^3 to 10^12 ohms/sq, 0 – 50C
- Measurement accuracy : Resistance 10%, Temp +2C
- Indication : LCD backlit display
- Power supply : 9 Volt DC battery
- Battery condition : Indication On LCD display
- Dimensions in mm : 125 x 62 x 35
- Weight : 160 grams
- Calibration : Recommended every 12 months
- Traceability : To national standards
- Warranty : 12 months.
- Accessories included : 1 m Grounding Cord & Carrying case
