Solder & Fluxes (Lead Free)

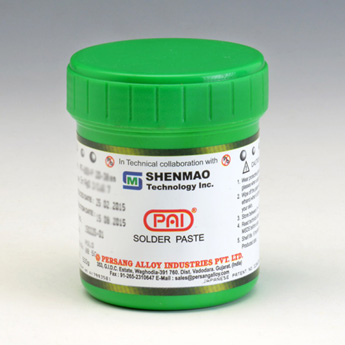

PF610-P No Clean Solder Paste

Specification

No Item Specification Standard
1 Appearance Gray Paste, No Foreign, No Stiff
2 Alloy Sn/Ag3.0/Cu0.5/Ni0.06/Ge0.01 JIS-Z-3282
3 Melting Point 217°C~219°C DSC
4 Particle Size (Type 3) +45µm 1% less ─20µm 10% less IPC-TM-650, 2.2.14
    (Type 4) +38µm 1% less, ─20µm 10% less
5 Powder Shape Sphere
6 Flux Content 11 ± 1.0 wt% JIS-Z-3197, 6.1
7 Halide Content <0.1 wt% (in flux) J-STD-004
8 Viscosity 200 ± 30 PA.s (25±1°C, 10rpm, Malcom ) JIS-Z-3284, Annex 6
9 Flux Type ROL0 J-STD-004
10 RoHS Compliant Yes International Standards

Physical Properties & Reliability Data

No Test Item Test Result Test Method
1 Copper Plate Corrosion Test PASS JIS-Z-3197, 6.6.1
2 Spread Test Sn/Ag3.0/Cu0.5/Ni0.06/Ge0.01 JIS-Z-3282
3 Silver Chromate Test PASS IPC-TM-650, 2.3.33
4 Copper Mirror Test PASS IPC-TM-650, 2.3.32
5 Fluorides By Spot Test PASS IPC-TM-650, 2.3.35.1
6 S.I.R Test 1×109 up IPC-TM-650, 2.6.3.3
7 Electro Migration Test 1×1012 up Pass IPC-TM-650, 2.6.14.1
8 Viscosity Test (25°C,10rmp) 200 ± 30 Pa.s JIS-Z-3284. Annex 6
9 Tack Test (gf) 140 up (8hr) JIS-Z-3284. Annex 9
10 Slump Test Less than 0.3 mm JIS-Z-3284. Annex 8
11 Solder Ball Test PASS JIS-Z-3284. Annex 11

▲Test Conditions : 85°C, 85% RH ◆Test Conditions: 65°C, 85% RH


ALLOY COMPOSITION

(Sn) (Ag) (Cu) (Ni) (Ge) (Zn) (Al) (Sb) (Fe) (As) (Bi) (Cd) (Pb)
REM. 2.8~3.2 0.3~0.7 0.04~0.08 0.005~0.02 0.001 Max 0.001 Max 0.05 Max 0.02 Max 0.03 Max 0.10 Max 0.002 Max 0.05 Max

Patent No. : Japanese Patent No. 3296289。 U.S Patent No. 6179935B1.
Japanese Patent Alloy Composition : Sn; 1.0≦Ag≦4, 0 U.S Patent Alloy Composition : Sn; 0
