Soldering & De-soldering Equipments (Sharang)

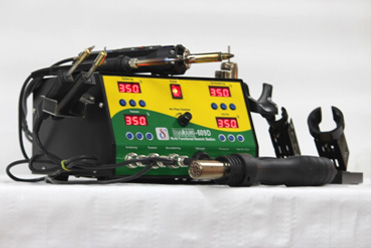

609D- Multifunctional Rework Station

Specification

  • Input 230 Vac +/-10 %
  • soldering iron 24 VAC / 60 W
  • Hot air gun max power rating 250W
  • Air blower 18 VDc brush less fan
  • Air flow 24 LPM
  • Tip to ground resistance under 2 ohms
  • Tip to ground potential under 2 mv
  • Temperature range 180-480 °C For soldering
  • Temperature range 200-450 °C For Hot air
  • Station weight approx 4.0 Kg
  • System includes: control unit, soldering iron, hot air gun, single hole nozzles 2 Nos, pick up tool

Features

  • Micro processor based pid control digital soldering station
  • Digital display for temperature reading.
  • Japanese ceramic heater with quick heat recovery
  • Wide range of inter changeble soldering bits & nozzles
  • Long life soldering iron bit with oxygen free copper & 300 micron iron plating covered with nickel & chrome
  • Micro control system,digital display,easy to work with
  • Pulses heating method,protect heating element,hot air blower from over heating,thus prolongs the machine's service life.
  • Automatic cool off system,protect the heater from overheating.
  • Sleek & Light weight soldering iron & Hot air handle
