ERSA Soldering Equipments

HR 200 - Hybrid Rework System

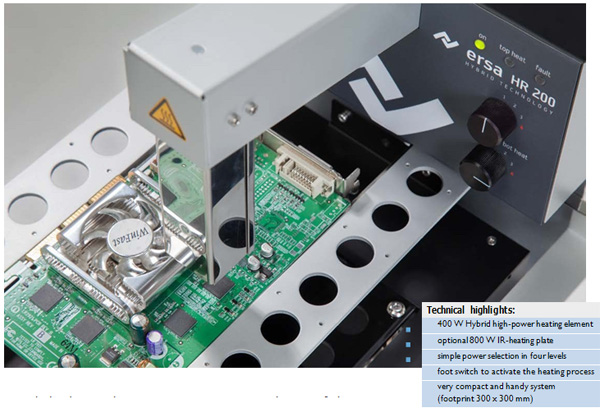

Ersa Hybrid Rework System HR 200 Ersa hybrid rework system HR 200 - Rework out of the Box!

Unpack, setup, solder! It´s simple as that to rework a PCB nowadays. The Ersa hybrid rework system HR 200 contains a 400 W hybrid high- power heating element to desolder and solder SMT components up to 30 x 30 mm. In addition, the system can operate a powerful 800 W infra- red heating plate. This bottom heater guarantees ideal preheating of the assembly to rework.

The operator selects the required power for top and bottom heating with a control knob, each with four levels. A foot switch activates the hea- ting process. The operator’s hands are free to remove the desoldered component with approp- riate tools.

Depending on the assembly and the preselected power a typical soldering time for components can range from 60 to 180 s (1 -3 min). During wor- king breaks, the bottom heater switches back to standby level. The integrated PCB holder locates the assembly in optimum working distance to top and bottom heater.

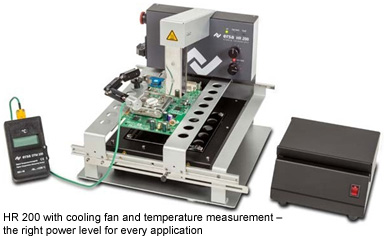

Ersa recommends an optional cooling fan, a ther- mocouple and a temperature-measuring instru- ment to complete the workplace. Additional ac- cessories including a Reflow Process Camera to observe the soldering processes rounds off the equipment.

Technical data

Dimensions (W x D x H) 300 x 300 x 280 mm
Weight 3.7 kg basic system / 1.6 kg heating plate
Supply voltage 230 V AC, 50–60 Hz, 4 A
Top heater data 30 x 30 mm, 400 W
Heating levels 1–4 30, 50, 70, 90 %
Top heater technology hybrid heater with medium wave infrared radiator and convection
Bottom heater data 150 x 150 mm, 800 W
Heating levels 1 - 4 40, 60, 80, 100 %, standby 30 %
Bottom heater technology medium wave infrared radiator with glass cover
PCB dimension (L x W) 215 x 300 (+x) mm
Working depth 170 mm
Working distance (typ.) 30 mm (to top and bottom heater)
Component dimensions 1 x 1 to 30 x 30 mm


Order information:

Order No. Description
0HR200 Ersa HR 200 Hybrid Rework System
0HR200-HP Ersa HR 200 Hybrid Rework System with heating  plate

Accessories

Order No. Description
0IR5500-13 cooling fan
0DTM103 temperature measuring device
0IR6500-01 AccuTC thermocouple
0IR5500-35 TC-holder Flexpoint
0PH100 PCB holder
0VSRPC500A-LE Reflow-Prozess Camera, complete
0IC1200A electronically controlled sol- dering  station, antistatic
