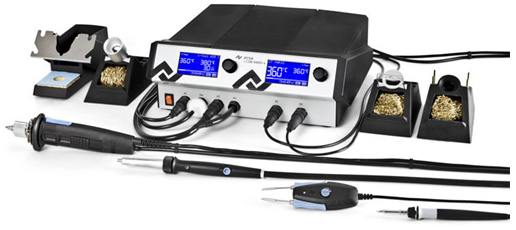

Ersa i-CON VARIO 4 multi-Channel Station
The i-CON VARIO 4 multi-channel soldering and de-soldering station offers to the professional user two simultaneously usable soldering tools.
In parallel to the new, ergonomically designed hot air soldering unit i-Tool AIR S (200 W) is it possible for three other soldering tool such as the 150 W i-Tool, the ideal tool for classical soldering applications, or the newly developed de-soldering tweezers Chip Tool Vario (80 W) or the x-Tool for de-soldering.
With a microSD memory card, the station can be quickly and safely configured, so that it is optimally prepared for all applications in professional electronic manufacturing. The station is well suited for the use in ESD protected zones.
i-CON VARIO 4 - Electronic Station - (0ICV403A)
| Power |
500 W |
| Voltage |
230 V / 50 Hz |
| Vacuum |
max 700 mbar |
| Volume of air |
2 – 20 l / min |
| Temperature range |
150 – 450 °C
(50–550°C–i-ToolAIR S) |
i-Tool AIR S - Hot Air Unit
| Power |
200 W |
| Voltage |
230 V / 50 Hz |
| Weight |
90 g (without supply line) |
| Hot Air Tips Series |
472 |
| Temperature Range |
50-500 °C |
| Temperature Sensor |
K-type |

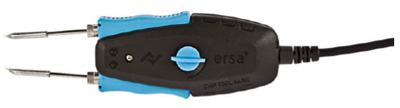

Chip Tool VARIO - Desoldering Tweezers - (0460MDJ)
| Power |
2*40 W |
| Voltage |
230 V / 50 Hz |
| Weight |
75 g (without supply line) |
| De-soldering Tips/Heating Element Series |
462 |
| Temperature range |
150-450°C |
X-Tool - Desoldering Tool - (0720ENJ)
| Power |
2 * 60 W |
| Voltage |
230 V / 50 Hz |
| Weight |
240 g (without supply line) |
| De-soldering Tips Series |
722 |
| Design |
Antistatic |
i-Tool - Soldering Tool - (0100CDJ)
| Power |
Max 150 W |
| Voltage |
230 V / 50 Hz |
| Weight |
30g (without supply line) |
| Soldering Tips Series |
102 |
| Temperature range |
150-450 °C |
The complete Multi-function Station with hot-air, heated tweezers, de-solder and i-Tool options for SMT soldering from 0201 upwards.
The compact, ESD static safe supply unit offers the easy and clearly arranged display, which is in the i-CON family of tools a standard feature. As in the larger i-CON VARIO 4, interfaces for the Ersa solder fume extractor unit or the infrared preheating unit are available, also the method to quickly and safely configure the station with a micro-SD memory card.
Highlights
- Extra-large multi-functional display
- Powerful fan for i-TOOL AIR
- Powerful vacuum pump with electric pressure control for X-TOOL
- Simultaneous operation of up to four tools as desired
- Power pack with power reserves for continuous operation
- Automatic tool recognition
- Automatic recognition of up to 6 different tools
- “One Touch” single button operation with i-OP control
- Standby function: selectable activation time and temperature
- Automatic tool switch-off: selectable activation time
- Process window alarm function
